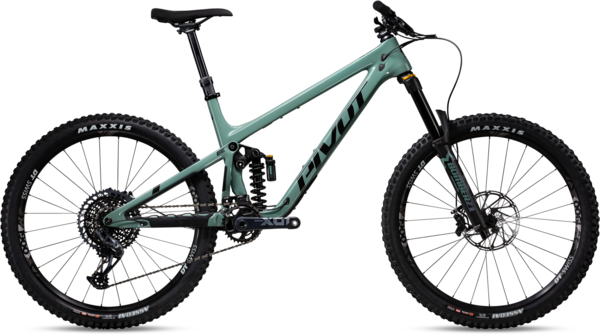

Pivot Cycles Mach 6 Pro X01SP (Alloy Wheels)

Pivot Cycles Mach 6 Pro X01SP (Alloy Wheels)
  • Color: Mint Relic
  • Color: Stealth
$6,599.00
Color:
Size: Select size
Please select options Unavailable

Details

The Mach 6, a true do-it-all superhero.

Built to Party
Our Ride builds pair supremely durable Marzocchi Bomber coil shocks with Bomber Z1 air forks. Pro and Team builds feature Fox DHX2 coil shocks and Fox 38 Grip2 forks; ideal set-ups for attacking technical terrain and banging out big days at the park.

Peg the Funmeter
The Mach 6 brings the benchmark stability and enduro performance of our 29" Firebird and infuses it with the unbridled fun that only 27.5" wheels can generate.

We'Ve Sweated Every Detail
Every Mach 6 build option is biased toward getting loose and going hard, but making sure that your bike stays in one piece while you test your limits.

PRODUCT DETAILS:

Get everything you need to know about the Mach 6.

- Aggressive geometry for the ultimate in all-mountain, enduro, bike park and extreme trail performance
- Phoenix DH inspired longer dw-link® maximizes the Mach 6's rearward wheel-path for erasing square edge bumps and maximizing control
- 158mm rear suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 160mm front travel for unrivaled suspension performance
- 160mm-travel Fox 38 Grip 2 fork with a DHX2 coil shock on Pro and Team builds deliver legendary park and extreme terrain performance with confidence for the big hits
- Lightweight FOX 36 with Float X2 air shock and FOX Live Valve options maximize pedaling performance while reducing overall weight
- Ride-level builds equipped with the incredible Marzocchi Bomber Z1 Air and Bomber CR coil-over shock for no hassle performance and maximum fun
- Quick accelerating 27.5" wheels guarantee a nimble, playful ride quality across all build options
- Fits tires up to 27.5x2.6" wide and comes stock with Maxxis Assegai 2.5" tires front and rear
- Hassle-free, full-length, internal cable routing with Pivot's easy to service and ultra-quiet Pivot Cable Port System
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Pivot's full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'10" to 6'2" has a bike that feels perfect and performs at the optimum level for their size
- Fits riders between 4'10" and 6'2" with X-Small to Large size offerings

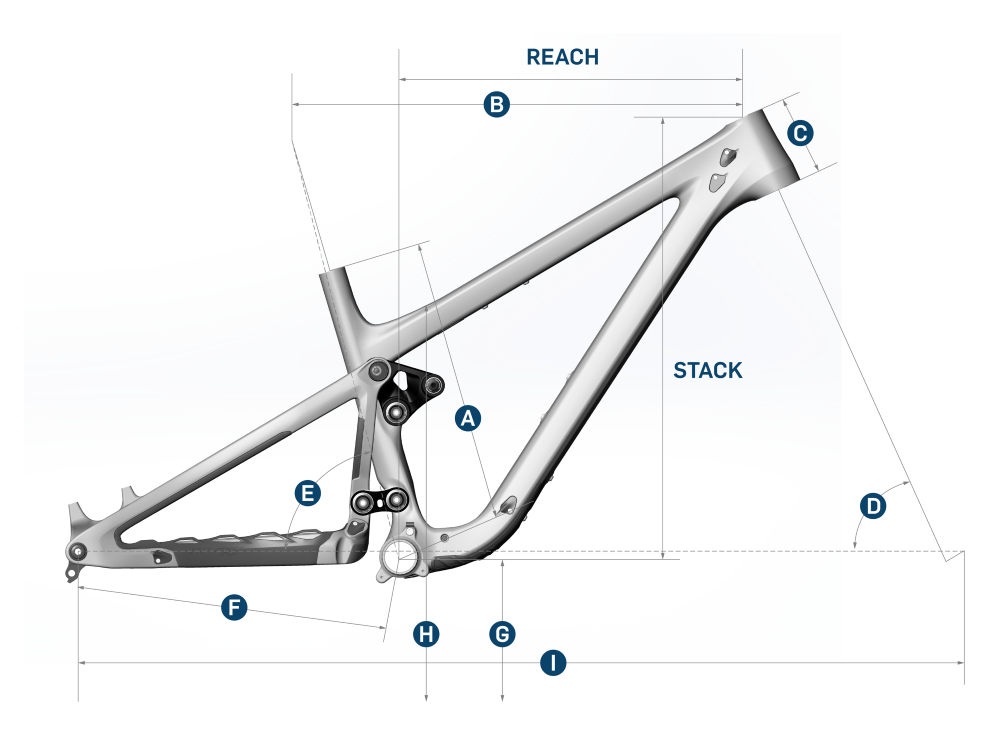

Geometry

Sizes:
160mm w/ High BBXSSMMDLG
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm
B Top Tube Length 56.2 cm 58.6 cm 61.8 cm 64.1 cm
C Head Tube Length 8.5 cm 10 cm 10.8 cm 12 cm
D Head Tube Angle 65.5° 65.5° 65.5° 65.5°
E Seat Tube Angle (Eff.) 76.0° 76.0° 76.0° 76.0°
F Chainstay Length 43.1 cm 43.1 cm 43.1 cm 43.1 cm
G Bottom Bracket Height 35.9 cm 35.9 cm 35.9 cm 35.9 cm
H Standover 64.2 cm 65.9 cm 68 cm 68.2 cm
I Wheelbase 114.6 cm 117.3 cm 120.6 cm 123.1 cm
Stack 56.4 cm 57.8 cm 58.5 cm 59.6 cm
Reach 41.5 cm 43.5 cm 46.5 cm 48.5 cm
Sizes:
160mm w/ Low BBXSSMMDLG
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm
B Top Tube Length 56.2 cm 58.6 cm 61.8 cm 64.1 cm
C Head Tube Length 8.5 cm 10 cm 10.8 cm 12 cm
D Head Tube Angle 65° 65° 65° 65°
E Seat Tube Angle (Eff.) 75.5° 75.5° 75.5° 75.5°
F Chainstay Length 43.1 cm 43.1 cm 43.1 cm 43.1 cm
G Bottom Bracket Height 35.3 cm 35.3 cm 35.3 cm 35.3 cm
H Standover 63.6 cm 65.3 cm 67.4 cm 67.6 cm
I Wheelbase 114.8 cm 117.4 cm 120.8 cm 123.3 cm
Stack 56.8 cm 58.1 cm 58.9 cm 60 cm
Reach 41 cm 43 cm 46 cm 48 cm

Specs not provided by mfg. Call us for details.

Videos

Part Numbers

Option UPC MPN Store SKU
Mint Relic / X-Small 196338144704 00M6CV427AXOASPMNTXSDRPMN
Mint Relic / Small 196338144681 00M6CV427AXOASPMNTSMDRPMN 210000027073
Mint Relic / Medium 196338144667 00M6CV427AXOASPMNTMDDRPMN
Mint Relic / Large 196338144643 00M6CV427AXOASPMNTLGDRPMN
Stealth / X-Small 196338144780 00M6CV427AXOASPSTLXSDRPMN
Stealth / Small 196338144766 00M6CV427AXOASPSTLSMDRPMN
Stealth / Medium 196338144742 00M6CV427AXOASPSTLMDDRPMN
Stealth / Large 196338144728 00M6CV427AXOASPSTLLGDRPMN
